Red Light Enforcement Camera

Red Light Enforcement Camera
Red Light Enforcement Camera
Product Code : SR590
Brand Name : MEDICAL SENSORS
Product Description

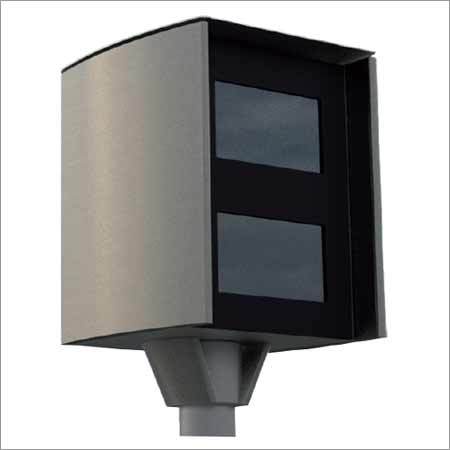

Red Light Enforcement Camera SR590

Non-invasive combined red light and speed enforcement With radar technology

TraffiStar SR590, featuring innovative Robot multiple target tracking radar technology, simultaneously enforces speed and red light running violations over multiple traffic lanes.

  • Robot SmartCamera technology ensures images with optimal license plate readability and driver visibility.
  • Multiple target tracking radar sensor
  • Simultaneous red light and speed monitoring
  • Vehicle classification with latest radar technology
  • Accurate speed measurement and red light violation detection with lane indication
  • Flexible plug-and-play technology with built-in flash unit and site configuration
  • Network-ready for remote control

The TraffiStar SR590 features innovative Robot tracking radar technology. Using a single radar sensor, the system monitors several vehicles and lanes simultaneously. By tracking the vehicles over a longer period, a clear assignment of the measurement is guaranteed.

The optimum photo point for each vehicle is calculated using virtual trigger lines ensuring unambiguous photos.

Flexible Robot plug-and-play technology simplifies the relocation of the entire measuring system between different locations. Site-specific settings are stored locally in the housing.

In order to secure evidence, a second image can be automatically triggered.

Additionally, an optional sequence camera or digital video camera can be connected to allow events prior to and after the violation to be recorded.

Like all current Robot systems, the TraffiStar SR590 allows remote access over a network connection and the same graphical user interface as on the device itself. It also supports easy integration into a network management system for managing multiple devices.

Technical Specifications

Sensor

Robot 24 GHz Radar / 100 mW E.I.R.P. (R & TTE conform)
Speed measurement from 10 km/h to 300 km/h

Camera

Robot Smart Camera IV

Flash

Integrated, 1/1000 5 flash duration

2 flashes/s, with full intensity, max 300 Ws (separately adjustable)

30° horizontal angle

User interface

6.5” TFT Display with 8 keys

Interfaces

USB / network (FTP, XML)

Operating temperature

-20 °C to +60 °C

Power supply

230 V AC / 115 V AC

Power consumption

Approx. 85 W

Weight

Approx. 20 kg (rack, depends on configuration)

Driver / owner liability

Rear and / or frontal photography

Secondary evidence

Two images (second image triggered by time or distance), video or cameras with equidistant images (sequence camera)

Lane specific speed limits

Yes

Alternative speed limits

Configurable time intervals

Blocking times

Yes

Classification

Yes

Configuration

Site configuration stored in housing and automatically loaded at start-up

Data security

Court proof data security

Additional flash

Yes

Further features

24/7 operation
Statistic data
Plug-and-play
European and world wide approvals
