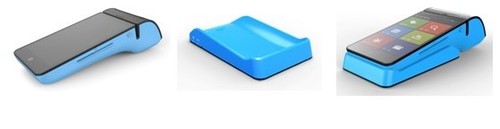

E Challan Device

E Challan Device
E Challan Device
Send Inquiry
Product Code : 121
Brand Name : MEDICAL SENSORS
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit/Units, ,
  • Price
  • 900000+GST INR
Product Description

Since our inception in 2004, we have successfully been engaged in manufacturing and supplying an excellent range of E- Challan Device with test certificates from NABL accredited Laboratories in India. We have a complete range with Inbuilt Printer,External Printer with Camera  with provision to send data to a back end server in real time etc.

Key Points:

  • Biometric authentication
  • Sturdy design
  • In-built printer
  • Flexible connectivity

Datasheet

Model                    MSI
5.5inch screen
Main Configuration
Opreating System Android 4.4
CPU Quad core,1.2Ghz, Qualcom 8212
Display Screen 5.5 inch IPS 1280*800
Touch Panel 5.5 inch Capacitive Touch
Memory DDRIII 1GB
NAND FLASH 8GB eMMC
Battery 3.7V / 6000mAh Lithum battery
Printer Built-in 58mm thermal printer
GPS Built-in GPS
Camera 5M Pixel
to scan 1D & 2D barcode
Audio Built-in Speaker,Microphone
WIFI 802.11b/g/n
Bluetooth Bluetooth 4.0
Magnetic Card reader Track 1/2/3,ISO7811,7812
IC card reader 1.8V/3V/5V,ISO7816/PBOC/EMV
NFC 13.56Mhz,ISO/IEC14443,18092
USB 1pc Micro USB2.0
TF socket Yes,Support Max 64GB
SIM Slot 1p SIM
1.8v/3v , 3G WCDMA2100,GSM/EDGE850/900/1800/1900
PSAM Slot 2pcs to encryption device,support 128bits RSA
Encryption Support DES/3DES/AES/RSA/ECC
Power Adapter Input 100-240v;Output:9.5V/1A
Rechare Dock Yes,Easy to take or put pos terminal to recharge
EMV certification Yes,EMV-Level 1,EMV-Level 2  (Visa,MasterCard)
Trade Information
  • Supply Ability
  • As per requirement Per Month
  • Delivery Time
  • 1 Week
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Carton box packing available.
  • Main Domestic Market
  • All India
