Breath Detector

Breath Detector
Breath Detector
Send Inquiry
Product Code : A 8080 T
Brand Name : MEDICAL SENSORS
Product Description

Owing to our  specialization in this domain, we are engaged in manufacturing and supplying a broad range of Breath Analyser A 8080 T. For detecting alcoholic content in body, offered analyzer is used at commercial and residential places. It is mainly used as a health safety equipment. This analyzer is manufactured by adroit professionals using premium quality components. Along with this, the provided Breath Analyser A 8080 T can be availed from us at rock bottom prices.

Key Points:

  • Simple to operate
  • Durable battery life
  • Excellent efficiency
  • Accurate measurement

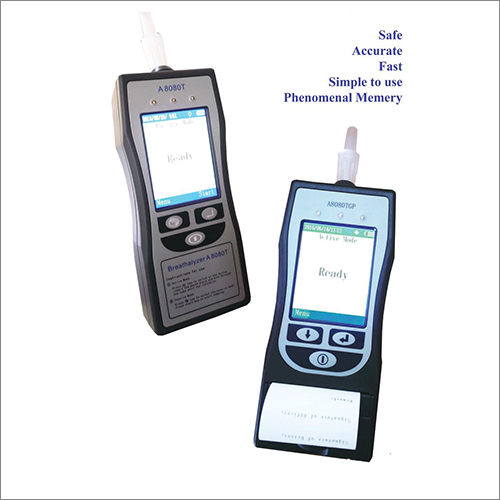

Breath Analyser A 8080 T

Technical Specifications

Measuring Modes

Fast Screening, Active and Passive Modes

Measuring Range

0 to 5.0 % BAC Or 0 to 50omg/ 100 ml BAC

Accuracy

+/- 5 mg/100ml upto & 200mg /10 ml BAC

Max, Measuring Error, in relation to the ethanol Standard

+/- 5% of measured value for higher measured range.

Ambient Conditions:

Temperature range â€â€œ operation

5oC To + 50°C

Temperature Range â€â€œ storage

20oC To + 60oC

Batteries

Rechargeable battery, Li-on 7.4 volts 2500 MAh

Number of measurements per full charge

More than 1000 tests , depending on the test and ambient Conditions.

Device Interface

RS 232 (Serial Interface). Data can be Transfer to a PC.

Dimensions L x W x H

190 mm x 100 mm x 28 mm

Weight

300g Incl. Batteries (Approx)

Response Time:

Ready To Measure after switching on

Approx. 5 Sec.

Ready To Measure after 0 % measurement

Approx . 3 Sec.

Ready To Measure after 1 % measurement

Approx . 5 Sec

Sensor Type

Electrochemical Fuel Cell ( Platinum Electrode)

Cross Sensitivities

In the form of other substances accompanying respiration, such as Acetone, CO, etc., these are negligible.

Mouth Pieces

Disposable Mouthpieces, which can take ordinary straw.

Input

Multi Touch Screen

Display

3.2" TFT LCD Color.

Printer

Dot matrix printer connected wirelessly by Blue Tooth for A8080T and inbuilt Thermal Printer for A8080TGP.

GPS

Display Latitude and Longitude (21 Satellite input type)

Data Memory

Stores 40,000 measured values with date and time.

Software

Optional PC Software for statistical analysis

Calibration

Every Six Months or as desired by user.
