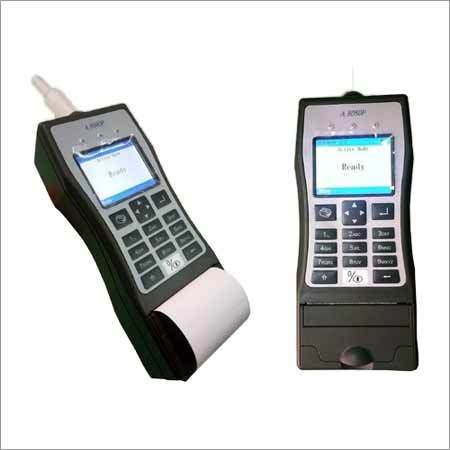

Breath Alcohol Detector

Breath Alcohol Detector
Breath Alcohol Detector
Send Inquiry
Product Code : A 8080P
Product Description

Since our inception in 2004, we have successfully been engaged in manufacturing and supplying an excellent range of quality approved Breath Alcohol Analyzer A 8080P. Offered analyzer is manufactured using latest technology by a team of diligent professionals. This analyzer is used to accurately detect the amount of alcohol in breath. Besides, the provided Breath Alcohol Analyzer A 8080P can be purchased from us at marginal prices.

Key Points:

  • Highly durable
  • Wide LCD screen
  • Compact design
  • Easy to operate

Technical Specifications


Measuring modes

Active and passive

Measuring range

500 mg/dL


Max. Measuring error, in relation to the ethanol standard:

Range 0 to100 mgldL

+5 mgldL

Range 1 to 200 mgldL

+5 % of measured value

Range 201 upto 500 mgldL

+10 % of measured value

Standard Deviation


Ambient conditions:

Temperature range – operation

10oC to +50°C / +23F to +122F

Temperature range – storage

20°C to +60°C / -4F to +14oF

Optimum storage temperature (sensor)

0°C to +25°C / +32F to +77F

Ambient pressure

600 to 1400 hPa

Ambient humidity

20 to 98 % r.h.

Minimum expiration volume

800 mL or depending on requirement


Inbuilt Li-on Battery.

Number of measurements per battery pack

more than 500 tests, Depending on the batteries and the ambient conditions

Device interface

USB Interface. Data can be transferred to a PC or printer.

Dimensions ( L x W x H)

7inches X 3inches X 1.5 inches.


3509 incl. Batteries


Ready to measure after switching on: approx. 5 sec.

Ready to measure after 0 % measurement: approx. 2 sec.

Ready to measure after 1 % measurement: approx. 5 sec.

Sensor type

E600 electrochemical measuring cell

Cross sensitivities

Negligible for other substances. e.g. atcetone. CO etc.

Measurement units

All units used world wide configurable


Menu-driven with clear text information


QWERTY key pad.

Power-saving mode

Device switches off automatically after 2.5 minutes of non-operation, the background lighting switches off after 15 seconds


2.4 ich color TFT LCD,fully graphic.

Data memory

Stores more than 40,000 measured values with date and time


Optional PC software for statistical analysis, data transfer and logging


Every 6 months

Mouth Pieces

With inbuilt Valve to prevent reverse breathing.


Built in thermal Printer as Standard.

Carry Case

Local Indian Carry Case4
